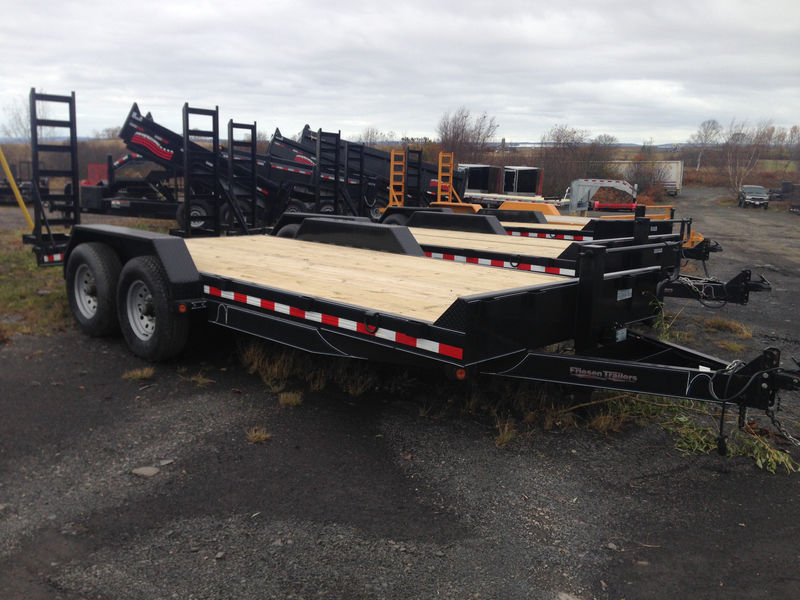

EQUIPMENT HAULER
Stocking Models
10,400 lbs.
EQ 83×18
15,000 lbs.
EQ 83×18
EQ 83×20
20,000 lbs.
EQ 83×20
Specs and Standard Equipment On 10,400 Lbs. Model
Axles ~ Tandem 5,200 Lbs., Electric, EZ Lube 1, 2
Suspension ~ 5 Leaf, Slipper Springs 1, 2
Tires ~ ST235/80R16, Load Range E, Radial
Wheels ~ 6 Bolt, Silver Modular 1, 2
Fenders ~ 9×72 Tear-Drop 2
Coupler ~ 2 5/16″ Cast 1, 2
Heavy-Duty Safety Chains
Jack ~ 7,000 Lbs. Drop-Leg, Top-Wind 1, 2
Structural ~ 6” Channel Frame & Tongue 1, 2
3” Channel Cross-Members On 24” Centers
Tie Downs ~ 14 Stake Pockets 1, 2
Ramps ~ 3” Channel, 60×16 1, 2
Rear Slide-In
Dovetail ~ 32″
Lights ~ Sealed Beam Lights
Factory Wiring Harness
Reflective Tape
Safety ~ Break-Away Kit
Floor ~ 2” Treated Yellow Pine
Paint ~ Powder Coated, 2 Color Pinstripe
Choose Between 2 Standard Colors: Case Yellow & Raven Black
Standard Equipment On 15,000 Lbs. Model 1
(Same As Above With Following Exceptions)
Axles ~ Tandem 7,000 Lbs., Electric, EZ Lube
Suspension ~ 6 Leaf, Slipper Springs
Wheels ~ 8 Bolt, Silver Modular
Fenders ~ 9×72 Tear-Drop
Coupler ~ 4 Bolt, Flat Mount Pintle Ring
Jack ~ 10,000 Lbs. Drop-Leg
Structural ~ 8” Channel Frame & Tongue
3” Channel Cross-Members On 16” Centers
Channel Spring Hanger Bracing
Tie Downs ~ 14 Stake Pockets
4 5/8 ” D-Ring
Ramps ~ 4” Channel
60×16 Stand-Up
Spring Loaded
Standard Equipment on 20,000 Lbs. Model 2
Axles ~ Triple 7,000 Lbs., Electric Brake, EZ Lube
Suspension ~ 6 Leaf Slipper Springs
Wheels ~ 8-Bolt, Silver Modular
Coupler ~ 14,000 Lbs. Adjustable
Jack ~ 10,000 Lbs. Drop-Leg
Structural ~ 7” Channel Frame
6″ Channel Tongue
3” Channel Cross-Members On 16” Centers
Tie Downs ~ 14 Stake Pockets
4 5/8″ D-Rings
Ramps ~ 3” Channel
60×16 Stand-Up
Options
Axles ~ 10,000 Lbs. Surge Brakes w/ 2 5/16″ Demco Actuator
Torsion Axles
Tires ~ ST225/75R15, Load Range D, Radial (10,400 Lbs. Model Only)
Spare Tire Mount
Spare Wheel
Spare Tire & Wheel
Fenders ~ 14 Guage Tear-Drop, Tread-Plate
1/8″ Tread-Plate
Coupler ~ 2 1/2″ Adjustable Pintle Eye
2 5/16″ Adjustable Coupler
Jack ~ 10,000 Lbs. Drop-Leg (10,400 Lbs Model Only)
Structural ~ Cross-Members On 16″ Centers (Standard On 15,000 Lbs & 20,000 Lbs Models)
4” Channel Cross-Members (15,000 Lbs. & 20,000 Lbs. Models)
Gooseneck Package
Tie Downs ~ 4 D-Rings (Standard On 15,000 Lbs. & 20,000 Lbs. Models)
Ramps ~ Stand Up Ramps (Standard On 15,000 Lbs. & 20,000 Lbs. Models)
Lights ~ LED Lights
Sealed Beam Lights w/ Wiring Harness (Standard on 15,000 Lbs. & 20,000 Lbs. Models)
Floor ~ Tread-Plate Steel Floor
Paint ~ Ask For Additional Colors
Add-ons ~ Chain Tray In A-Frame
